YS-YBQF中速硬币清分机是我司自主研发并生产的，是一种集检伪、清分、计数为一体的分拣机。通过对硬币的材质、大小、厚度等参数进行综合判别，并通过我司自行研发的跑道式轨道，快速清分每一种硬币的数量、金额以及异币数量，能剔除99.99%的假币、异币。
YS-ACS-WB-M Middle speed coin sorter is the product ofour company’s independent research and development. This machine can dochecking, identifying and counting coins by the material, dimension, thicknessand so on. And through our company R & D runway, to sort every coin by thequantity, gross amount and separate counterfeit, and different coins at 99.99%rate.
性能特点：Performance characteristics
检伪方式：本机是由我司自行研发的传感器对不同的硬币进行检测判别，实现硬币检伪计数功能。
Detection Mode: The sensor of this machine is independently developedby our company, which can detect and count coins by the differences of coins .
清分方式：采用全新电子驱动式，提高清分准确率。
Sorting Mode: This machine improved sorting accuracy by combining anew electronic-driven way .
报警装置：在清分过程中若出现异常或卡币现象，系统立即报警停机，提示出错位置，不会造成硬币清点数量混乱，从而保证清分和检伪的准确性，提高工作效率。
Warning Device: If the abnormal condition or the coin jam occur, thesystem immediately alarm, suggesting error location, eliminating confusionsorting, thus ensuring the accuracy of sorting and authentication to improvework efficiency.
液晶显示器触摸屏：采用液晶显示器，实体按键和触摸屏两种操作方式相结合，实现最简单、方便的人机交流方式。
LCDtouch screen: It adopts LCD touch screen, with both touch screen andphysical buttons, achieve the most simple and convenient way of man-machinecommunication.
预置循环功能：将某一币种预置一定数量，超过预置数量的硬币被打到回币盒，既实现预置不停机，又避免盛币斗堵塞，功效得到明显提高。
Presetcirculation: Extracoins will be hit to the coin box by presetting the number of coins, whichachieve not only presetting non-stop, but also avoiding coin jam. Efficacyimproved significantly.
自学习功能：本机具备自学习新币种的功能，能够满足全球各国硬币的清分。
Self-learning: themachine includes a self-learning of the new currency function, which can meet thecoin sorting all over the world.
技术参数：Technical parameters
产品型号 Type | YS-ACS-WB-M、YS-ACS-M |
入币方式 Feeding coins mode | 自动传送带/手工传送下料 Automatic feeding/Manual feeding |
清分结构 Sorting Mechanism | 电子驱动式 electronic-driven |
清分种类 The number of varieties of the coin sorting | 6种硬币 6 kinds of coins |
清分速度 Sorting Speed | 约800枚/分钟 About 800pcs /min |
操作方式 Operation Mode | 触摸屏+实体按键 Touch screen and physical buttons |
设备材质 Equipment Material | 硬质铝合金（永不磨损） Hard aluminum alloy (never wear) |
显示语言 Language | 中文/英文 Chinese/English |
设备尺寸（6种币） Size (6 kinds of coins) | 730mm(L)×330mm(W)×430mm(H) |
电源 Power Supply | AC220V±10﹪/50Hz，110V/60Hz |
功率 Power consumption | 待机：15W；工作：100W Standby mode：15W； Working condition：100W |
储币盒容量 Capacity | ≤650枚/盒 ≤650pcs / box |
储币袋/容量 Pocket/Capacity | ≤2000枚/盒 ≤2000pcs / box |
设备净重（6种） Net Weight（6 kinds of coins) | ≈45KG |
拣硬币直径 Sortable Coin Diameter | 14-34mm |
分拣币厚度 Sortable Coin Thickness | ≤4mm |
计数方式 Counting Mode | 连续计数试、预置计数 Continuous Counting/presetting counting |

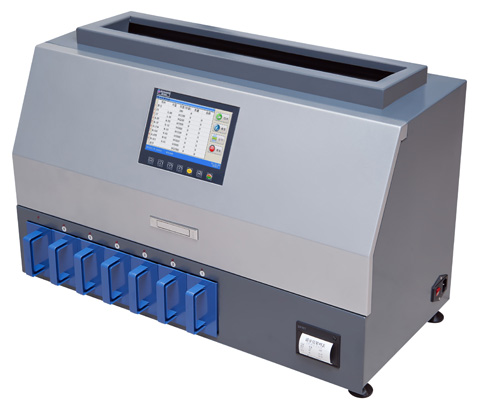

中速机（传送带）

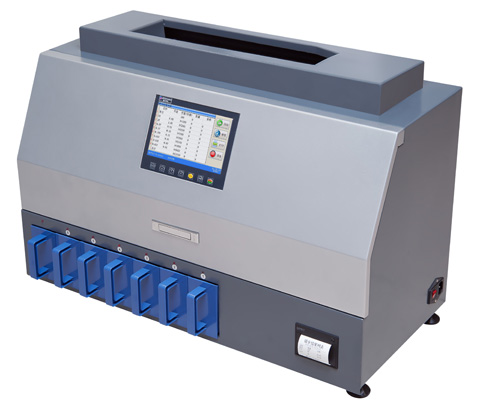

中速机（无传送带）
